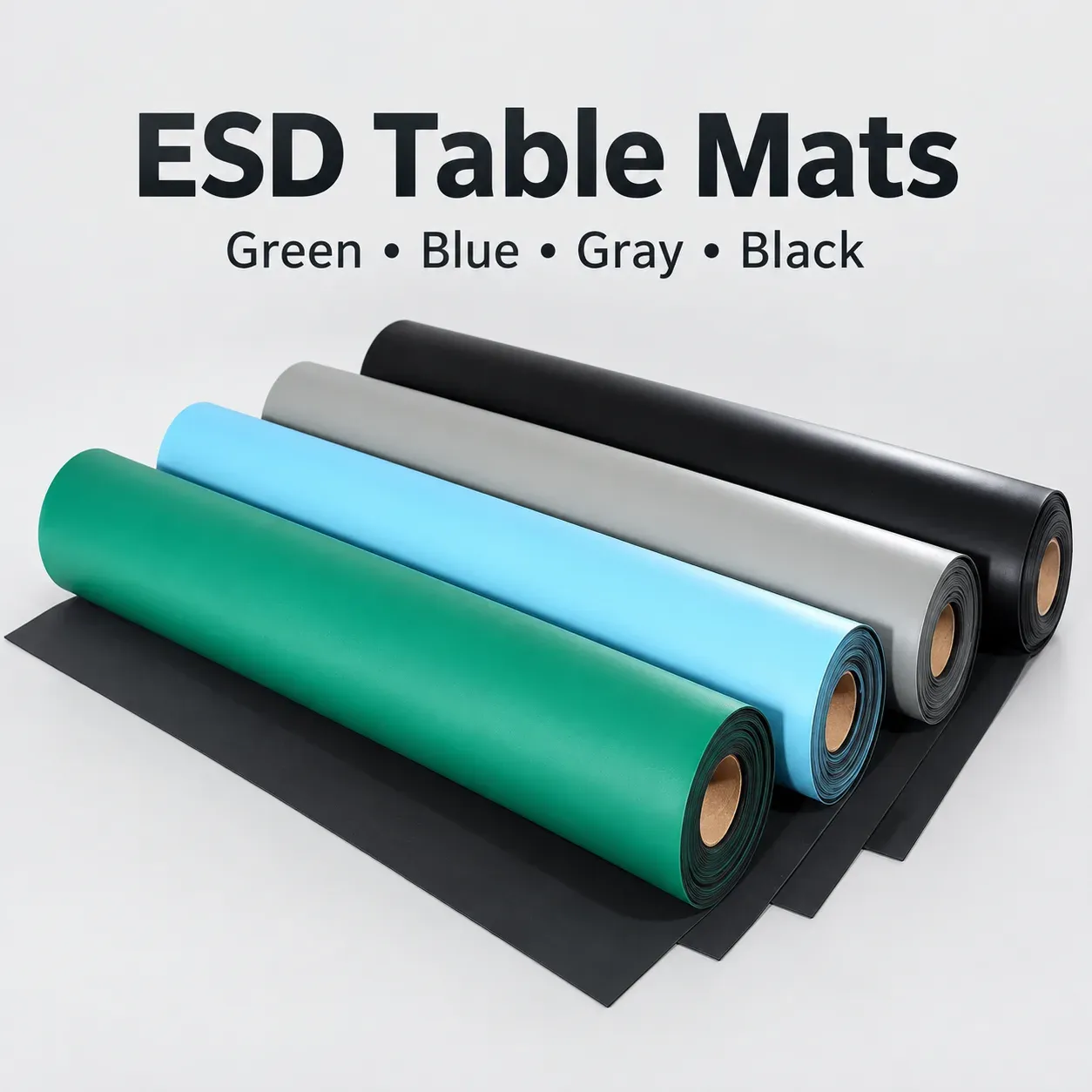

ESD table mat rolls in green, blue, gray and black

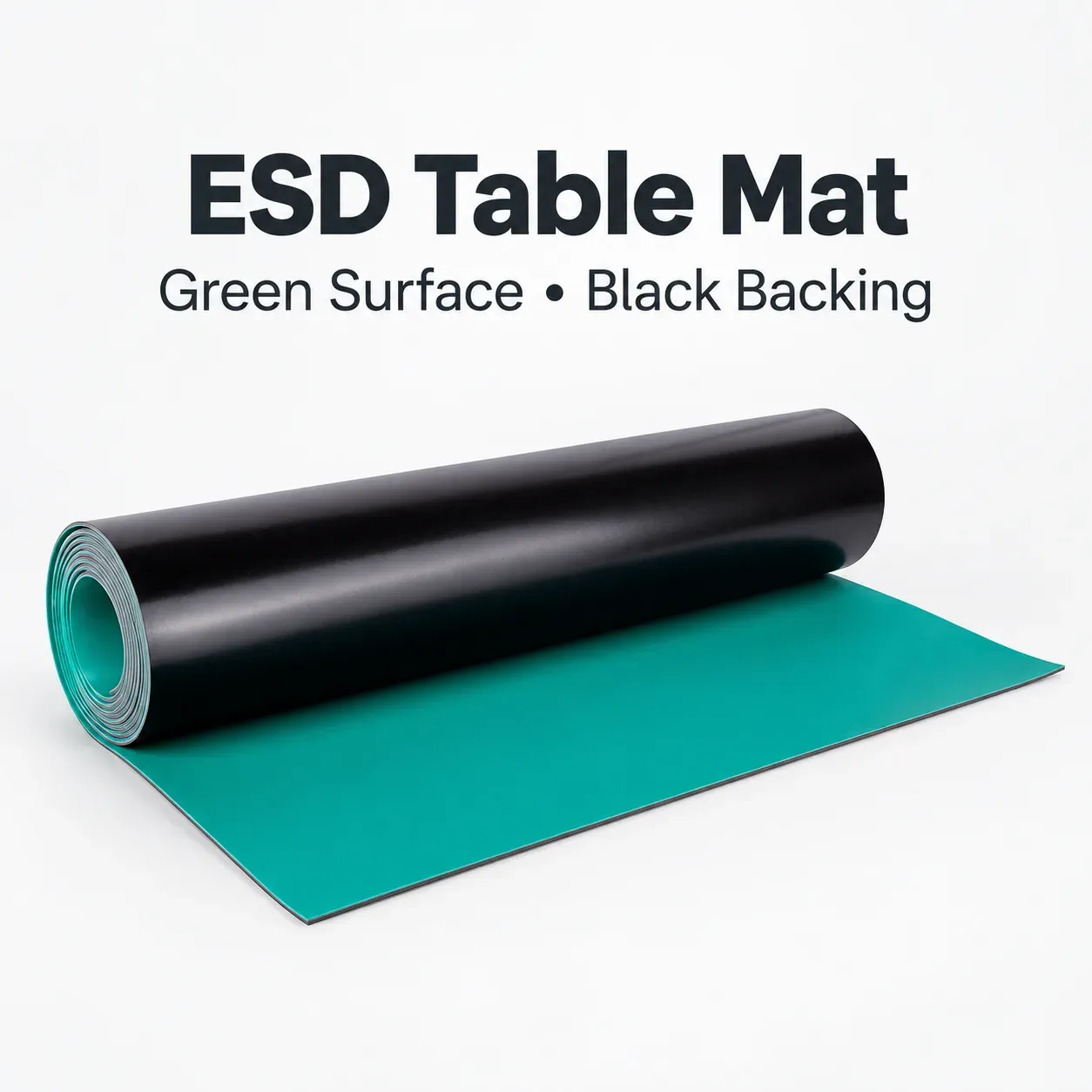

ESD table mat roll showing green static-dissipative top surface and black conductive backing layer

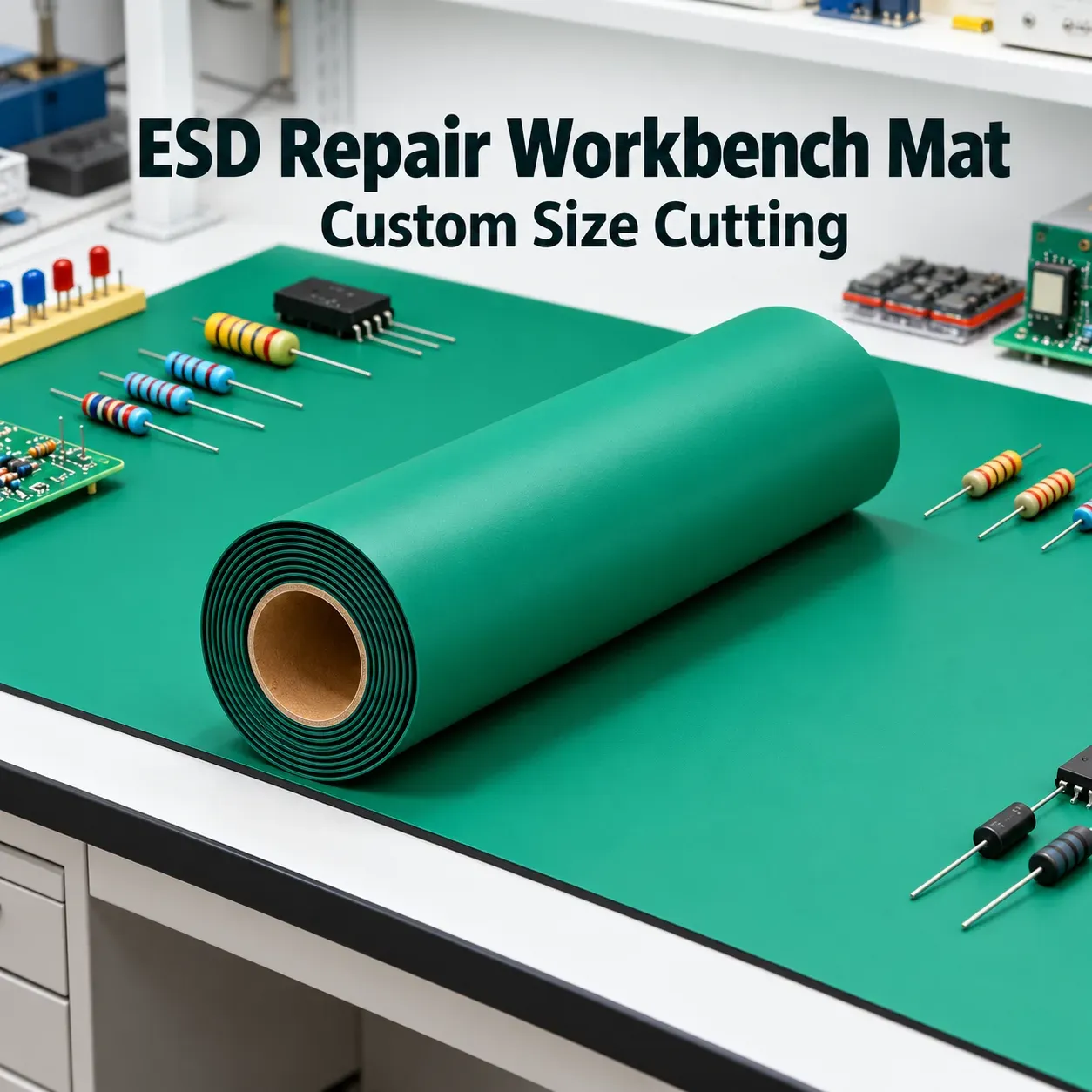

Green ESD table mat on an electronics repair workbench with electronic components

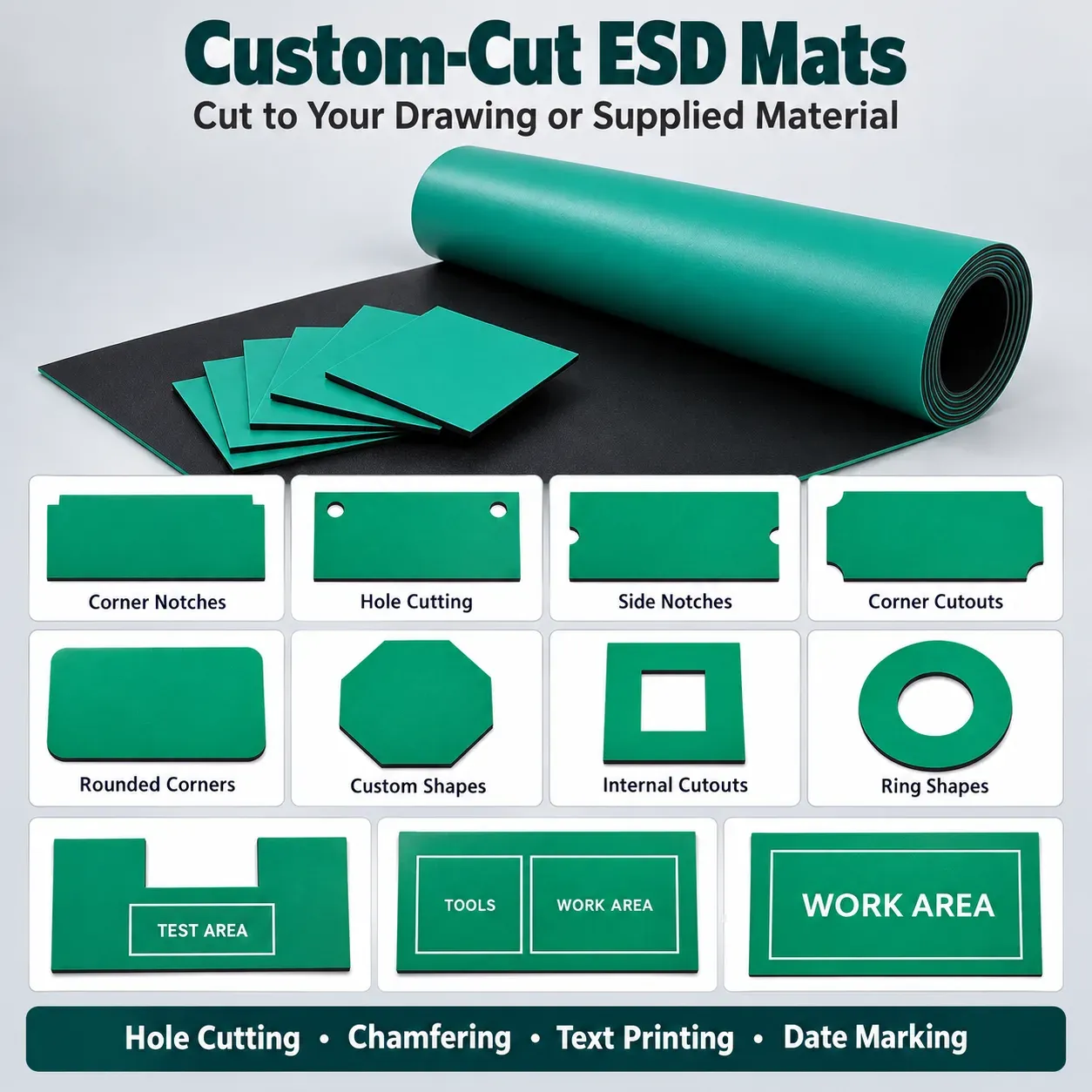

Custom cutting options for ESD mats including hole cutting, notches, rounded corners, custom shapes and text printing

ESD Table Mats

MS-E001 ESD Table Mat

Two-layer PVC anti-static table mat for electronics workbenches, assembly lines and repair stations. 2 mm thick, green, blue, gray or black surface, supplied as rolls or custom-cut sheets.

Specifications

Model: MS-E001
Material: PVC, two-layer
Thickness: 2 mm
Dimensions: Custom-cut to requirements
Surface Resistance: 10⁶–10⁹ Ω
Backing Resistance: 10³–10⁵ Ω
Static Decay Time: <0.1 s
Colors: Green / Blue / Gray / Black
Width Range: Up to 1.5 m
Supply Form: Rolls or custom-cut sheets
Customization: Cut-to-size, hole cutting, text printing, date marking
Applications: Electronics repair, assembly lines, workbenches, laboratories

The MS-E001 ESD table mat provides a static-dissipative work surface for electronics assembly, repair and inspection areas. The mat is made of PVC with a two-layer structure: a colored static-dissipative top layer and a black conductive backing layer for grounding. Standard thickness is 2 mm, and every mat is cut to your required size.

Key Specifications

Material: PVC, two-layer structure

Thickness: 2 mm

Dimensions: cut to customer requirements (no fixed standard sizes)

Surface resistance: 10⁶–10⁹ Ω

Backing resistance: 10³–10⁵ Ω

Static decay time: <0.1 s

Tensile strength: 3.6 MPa

Tear strength: 20.6 kN/m

Rebound resilience: 14%

Elongation at break: 188%

Abrasion loss: 0.02 g/cm²

Short-term temperature resistance: 260°C

Width range: up to 1.5 m

Colors: green, blue, gray, black

Supply form: rolls or custom-cut sheets

Built for Electronics Workstations

The mat supports safe handling of electronic components, tools and assemblies on workbenches, assembly lines and in laboratories. The dissipative surface helps protect static-sensitive devices during everyday work.

Custom Cutting to Your Requirements

Mats are supplied as rolls or cut to your requirements. Available options include hole cutting, corner and side notches, rounded corners, custom shapes, internal cutouts and ring shapes. Text printing and date marking are also available, and grounding snaps can be installed at your required positions.

Send your dimensions or drawing, quantity and application. We will confirm the available options and prepare a quotation.

Ordering Information

Order quantities are suited to sample evaluation, trial sales and workstation projects. Matching wrist straps, grounding cords and other grounding accessories are available separately or can be supplied together with the mats.
