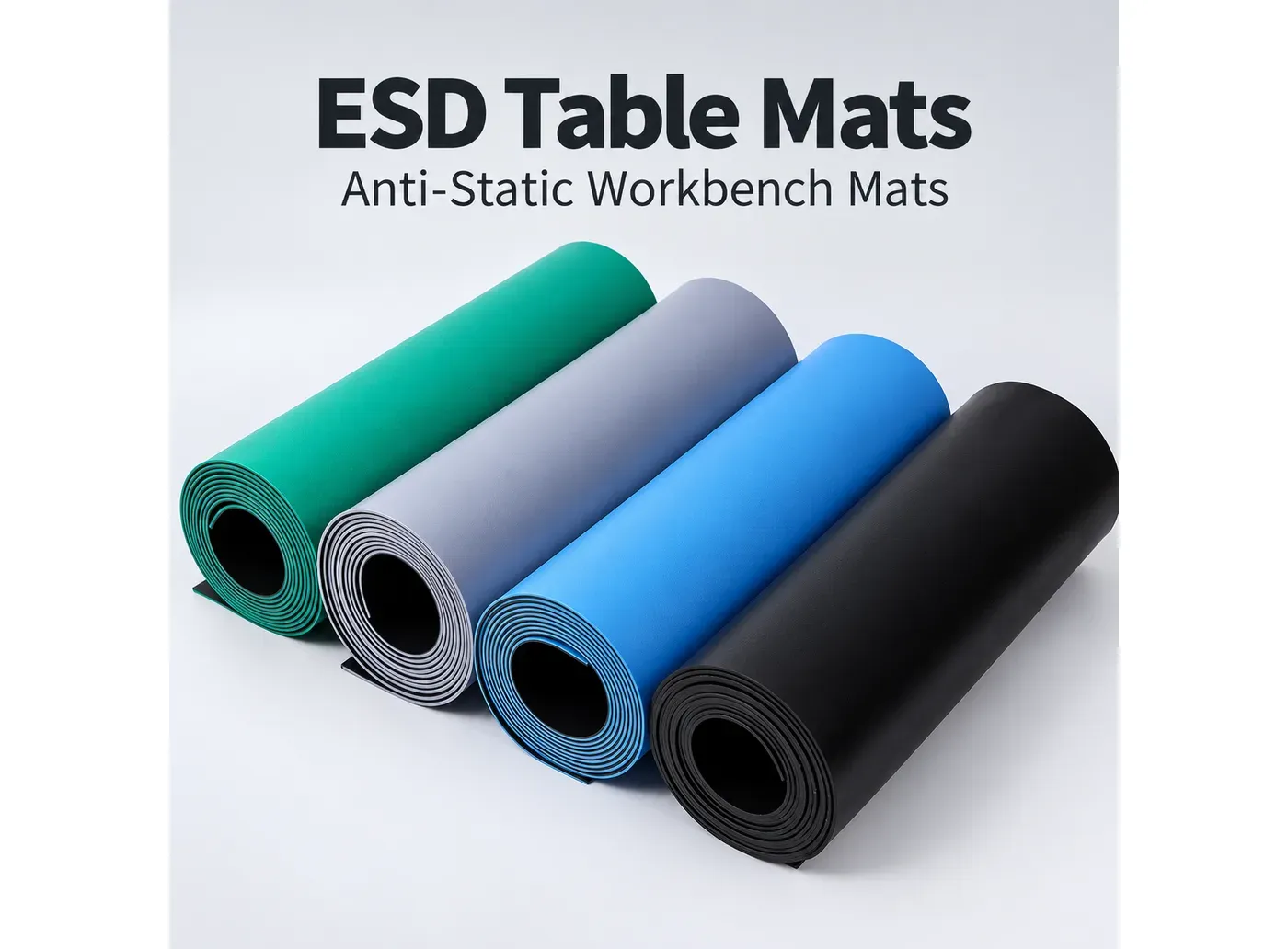

ESD Table Mats
MS-E002 PVC ESD Table Mat

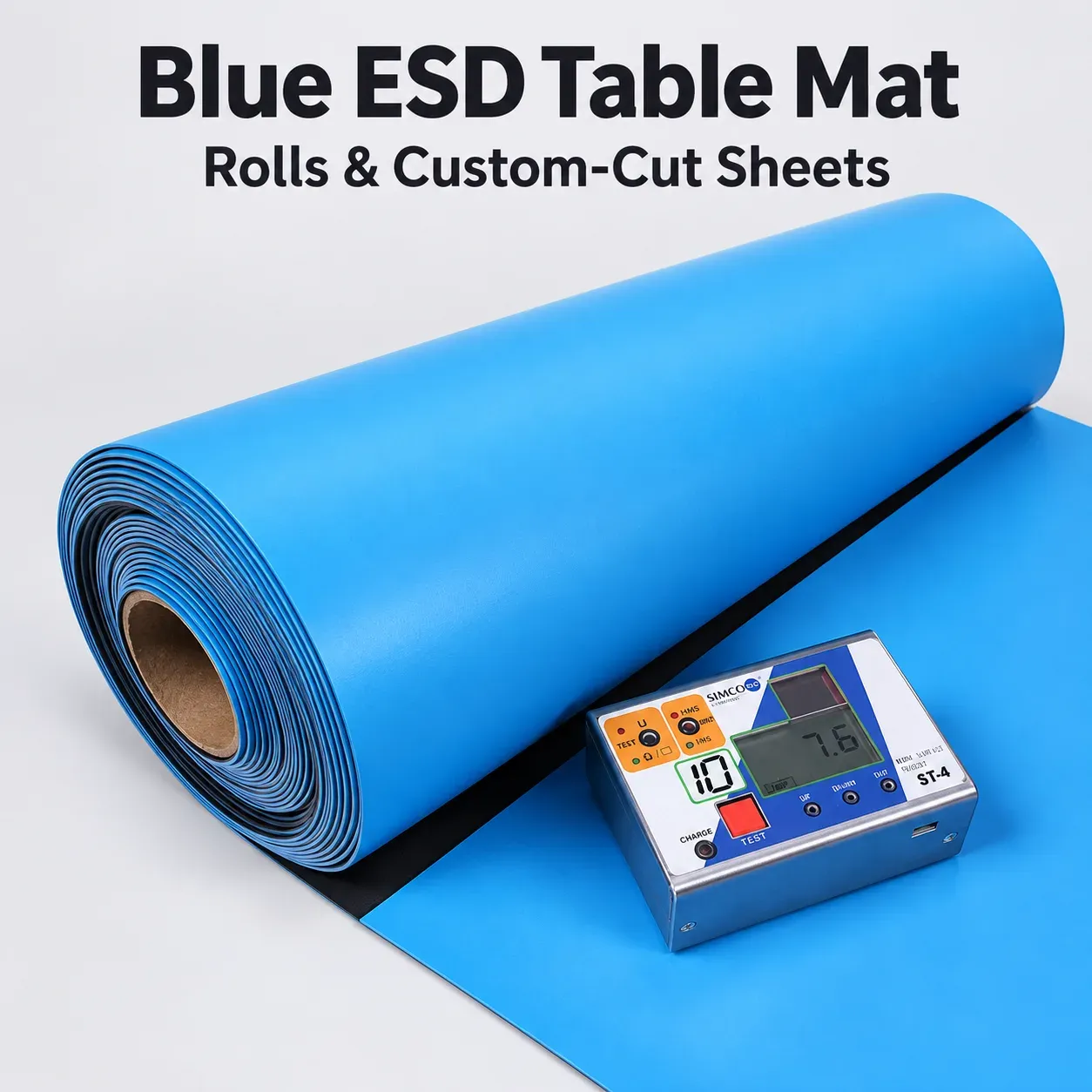

PVC ESD table mat for repair workbenches and assembly lines. Two-layer construction, supplied as rolls or custom-cut sheets. Custom colors available.
Specifications
- Model
- MS-E002
- Material
- PVC, two-layer
- Thickness
- 2 mm
- Dimensions
- Custom-cut to requirements
- Surface Resistance
- 10⁶–10⁹ Ω
- Backing Resistance
- 10³–10⁵ Ω
- Static Decay Time
- <0.1 s
- Standard Colors
- Green / Blue / Gray / Black
- Custom Colors
- White / Brown / Apple Green on request
- Width Range
- Up to 1.5 m
- Supply Form
- Rolls or custom-cut sheets
- Applications
- Repair workbenches, assembly lines

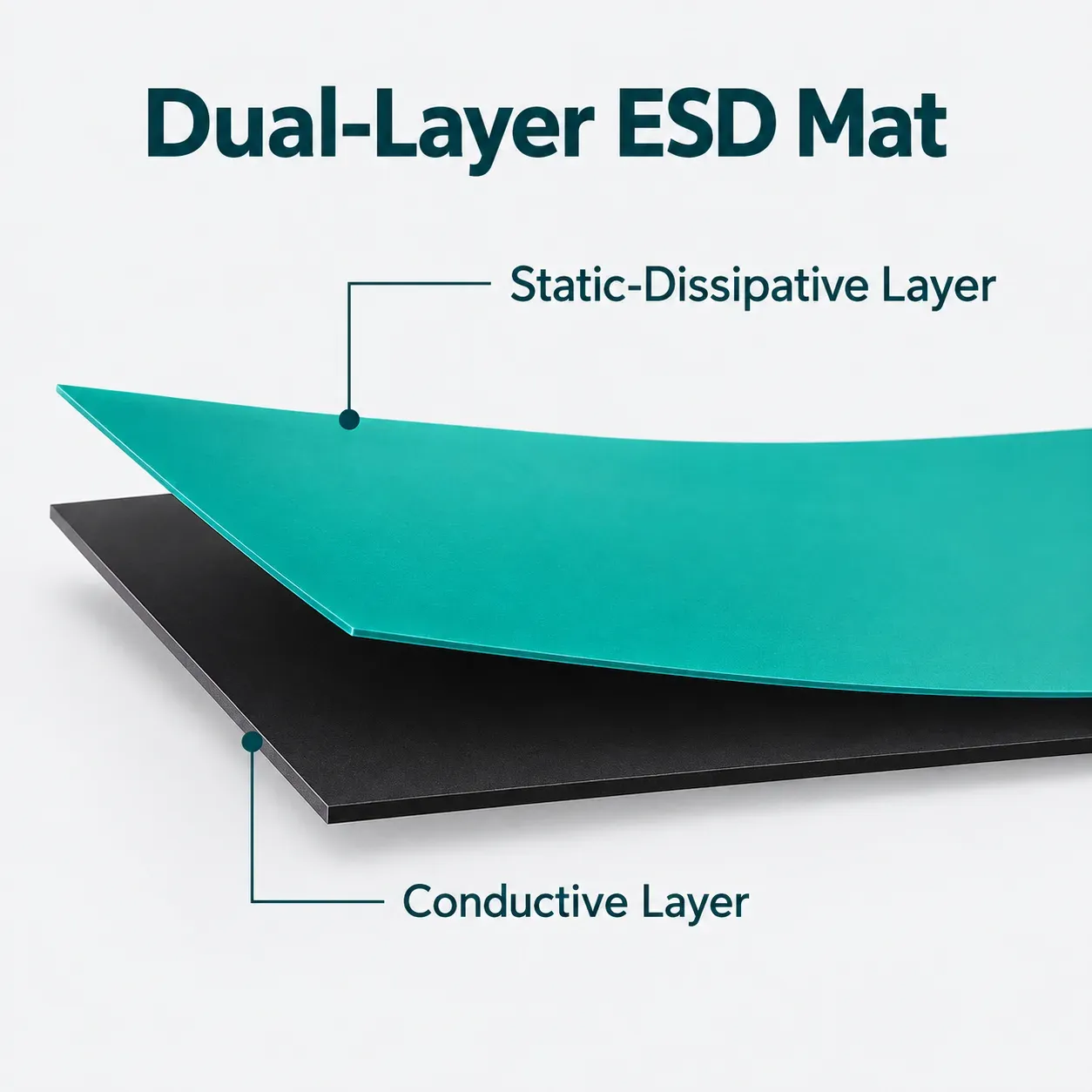

The MS-E002 PVC ESD table mat provides a static-dissipative work surface for repair workbenches and assembly lines. Made of PVC with a two-layer structure, it combines a colored static-dissipative top layer with a black conductive backing layer for grounding. The mat is 2 mm thick and supplied as rolls or custom-cut sheets.
Key Specifications
Material: PVC, two-layer structure
Thickness: 2 mm
Dimensions: cut to customer requirements
Surface resistance: 10⁶–10⁹ Ω
Backing resistance: 10³–10⁵ Ω
Static decay time: <0.1 s
Width range: up to 1.5 m

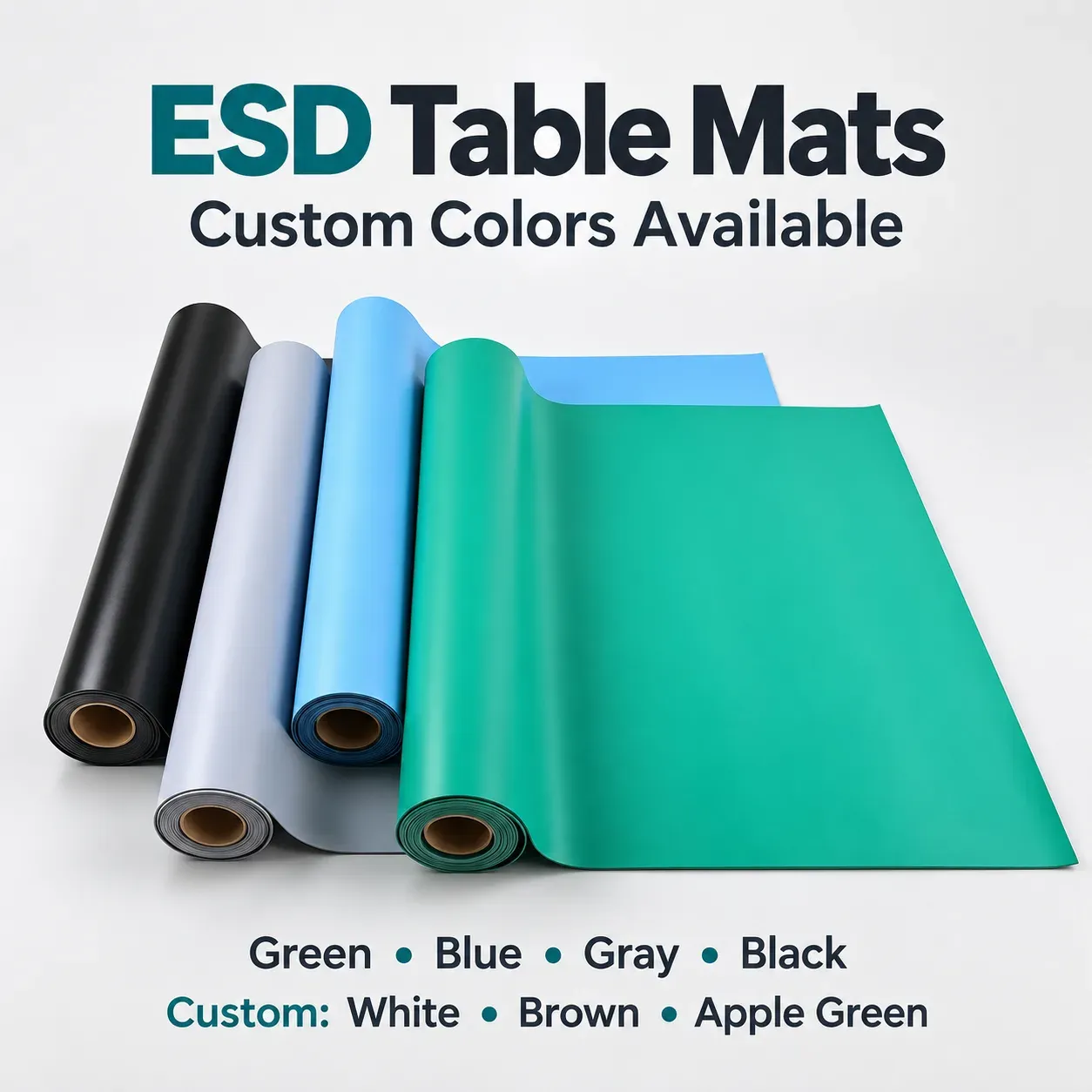

Standard colors: green, blue, gray, black
Custom colors: white, brown and apple green available on request
Supply form: rolls or custom-cut sheets

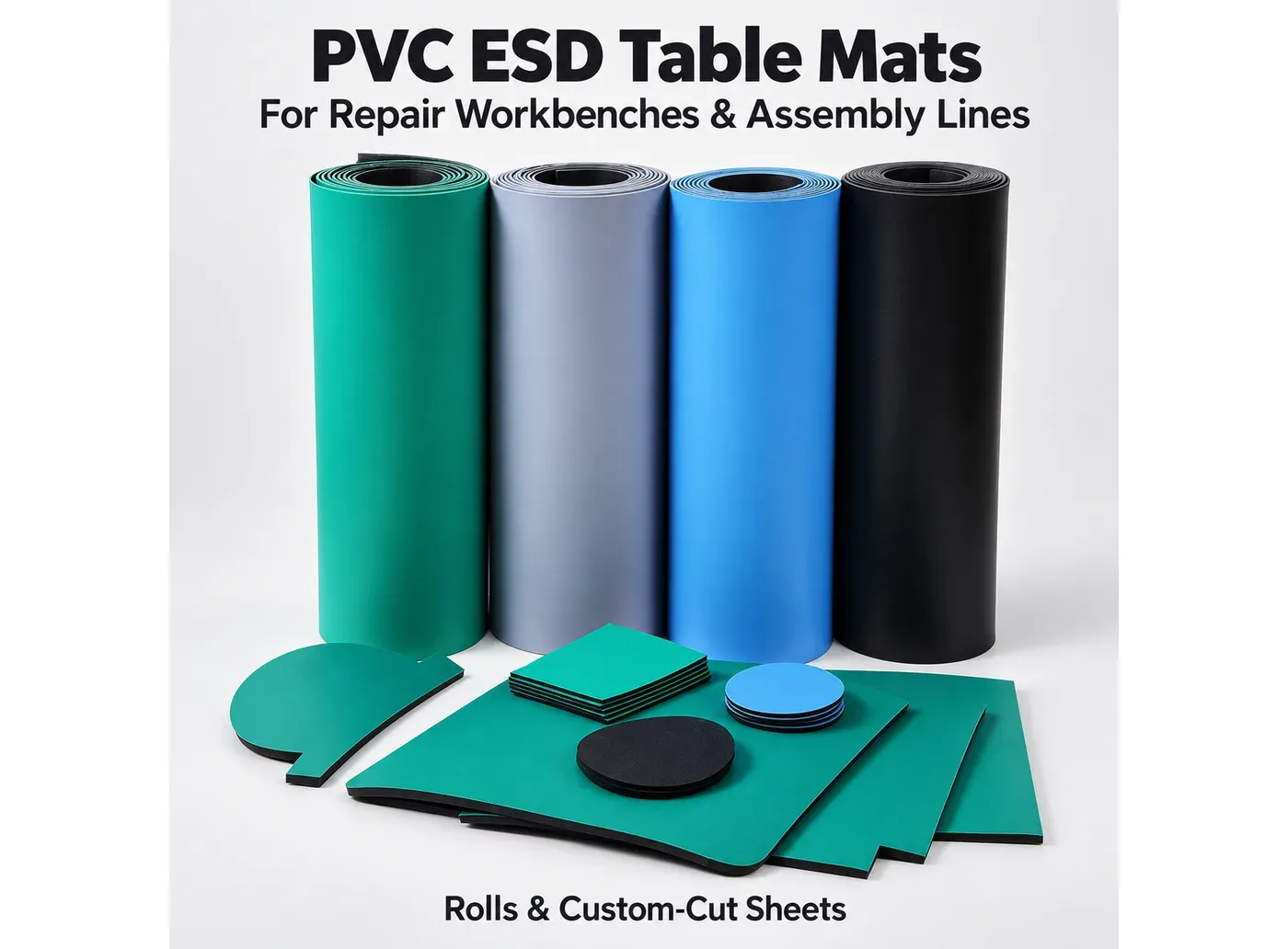

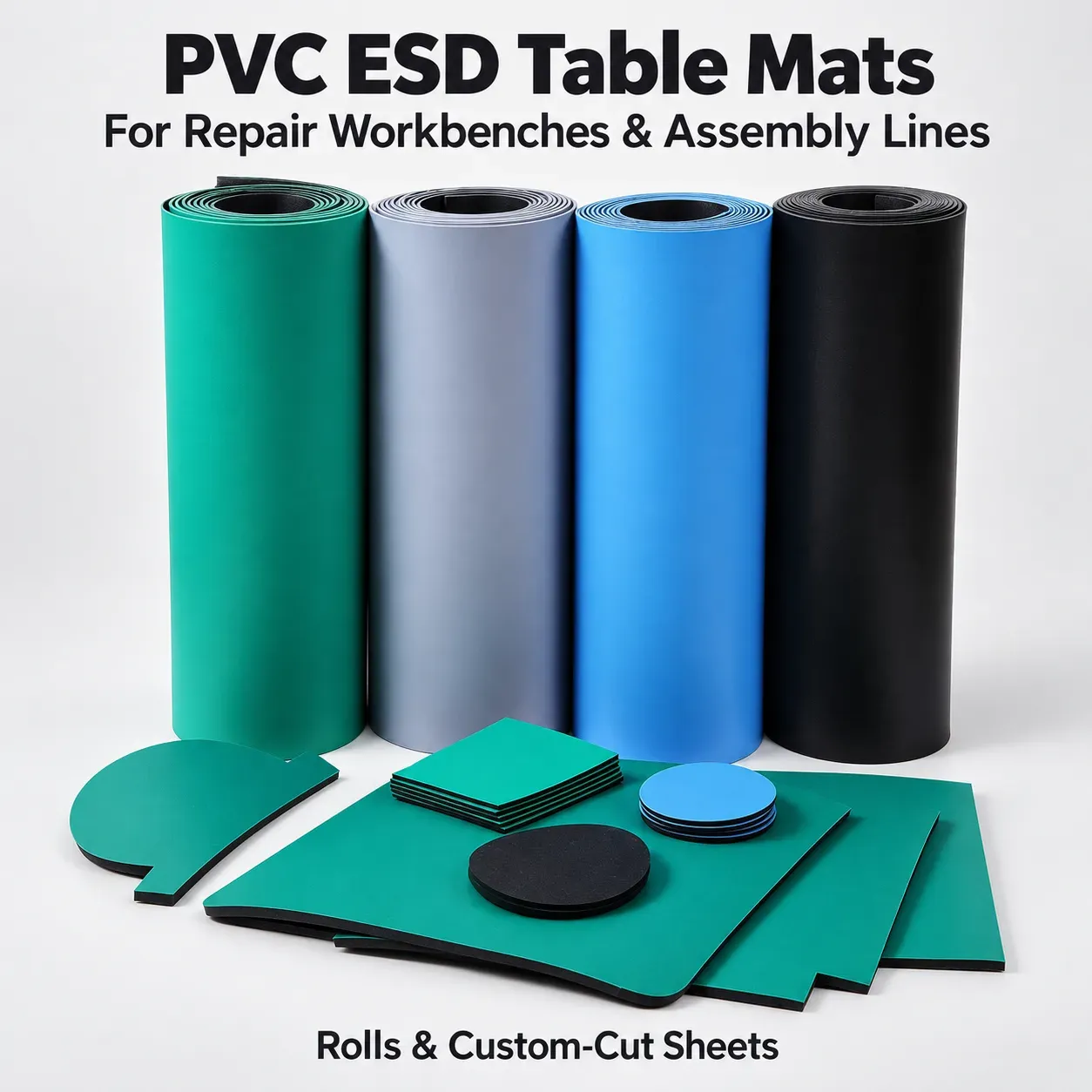

For Repair Workbenches and Assembly Lines
The mat supports safe handling of static-sensitive devices on repair benches and assembly line stations. Matching wrist straps, grounding cords and grounding accessories are available separately or supplied together with the mat.
Ordering Information
Order quantities suit sample evaluation, trial sales and workstation projects. Send your dimensions, quantity and application — we confirm the specifications and prepare a quotation.
