MS-E003 Custom-Cut ESD Mat
Custom-cut ESD mat manufactured to your drawing — sizes, shapes, holes and cutouts, with grounding snap installation.
Specifications
- Model
- MS-E003
- Material
- PVC, two-layer
- Thickness
- 2 mm
- Cutting Options
- Holes, notches, rounded corners, custom shapes, cutouts, ring shapes
- Surface Resistance
- 10⁶–10⁹ Ω
- Backing Resistance
- 10³–10⁵ Ω
- Extras
- Chamfering, text printing, date marking
- Grounding
- Snaps installed to requirement
- Applications
- Custom workstations and fixtures

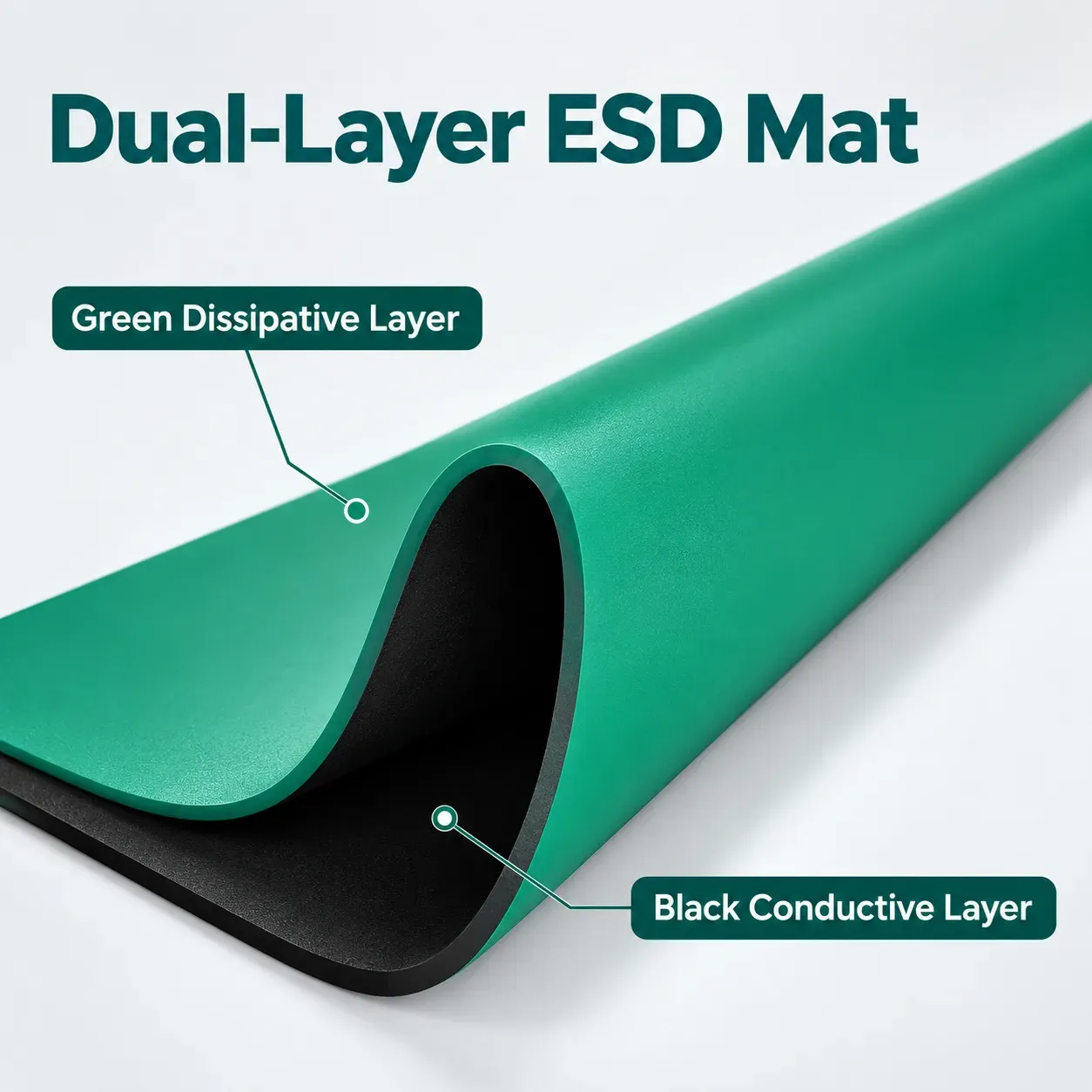

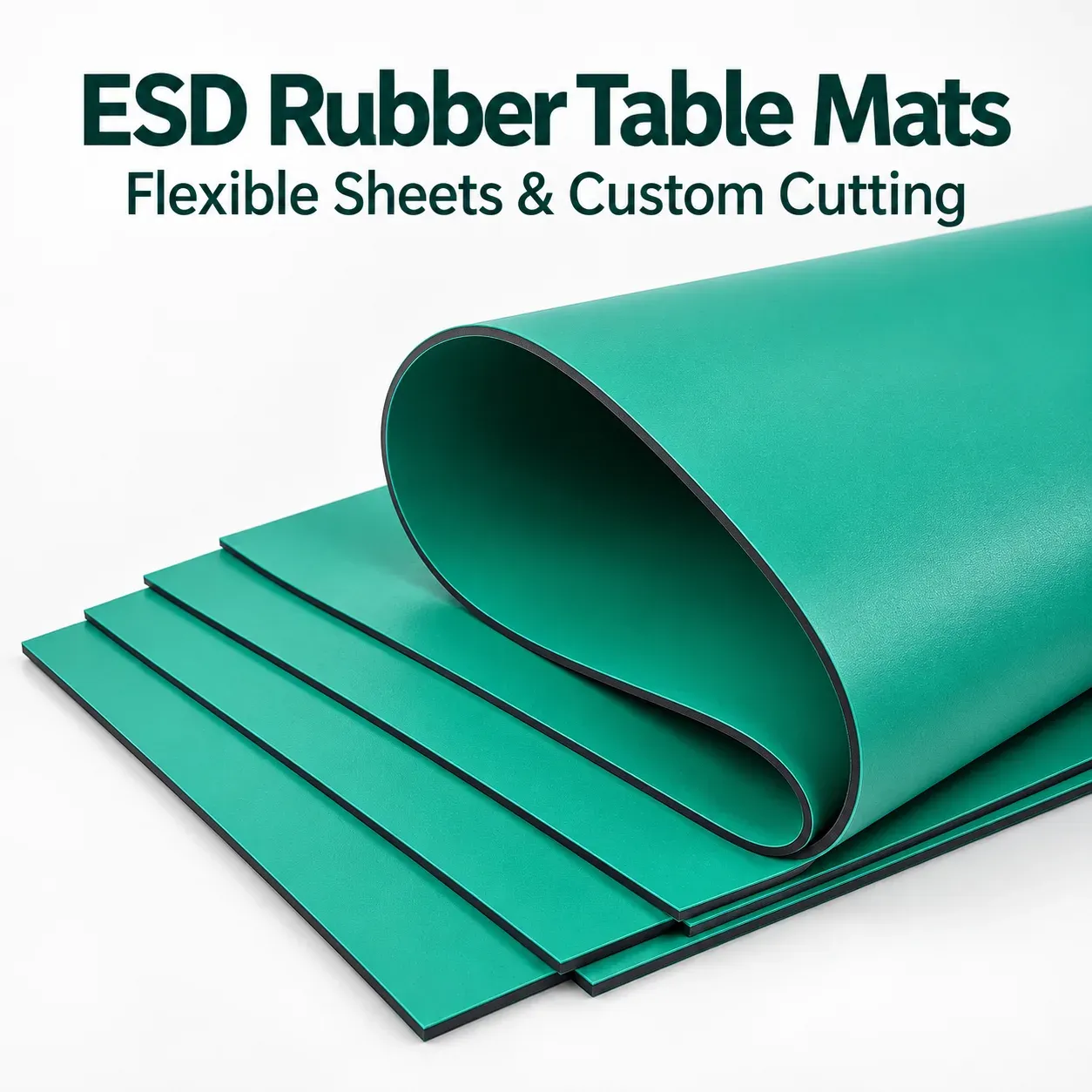

The MS-E003 custom-cut ESD mat is manufactured to your drawing. Mats are cut from two-layer PVC material to the exact size and shape your workstation requires, with a colored static-dissipative top layer and a black conductive backing layer for grounding.
Cutting Options

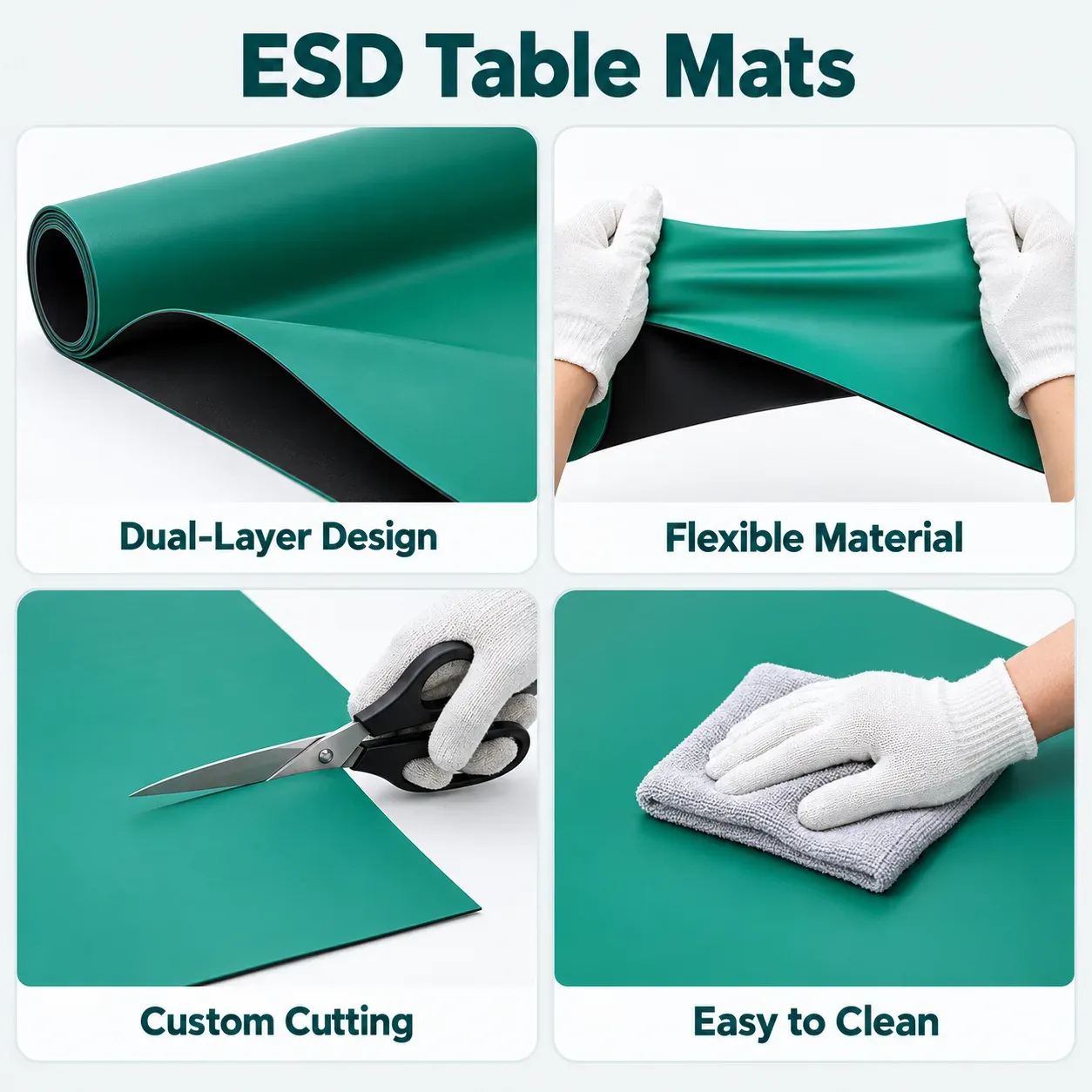

Available cutting options include hole cutting, corner and side notches, rounded corners, custom shapes, internal cutouts and ring shapes. Chamfering, text printing and date marking can also be added to the surface.
Grounding Snap Installation
Grounding snaps are installed at the positions you require, so the mat connects directly to your grounding system. Matching wrist straps, grounding cords and connectors are available separately or supplied together with the mat.
What to Send for a Quotation
Send your drawing or dimensions, quantity and application. We confirm feasibility, cutting details and grounding snap positions, then prepare a quotation. Paid samples are available for evaluation.
Ordering Information
Order quantities suit sample evaluation, trial sales and workstation projects.
