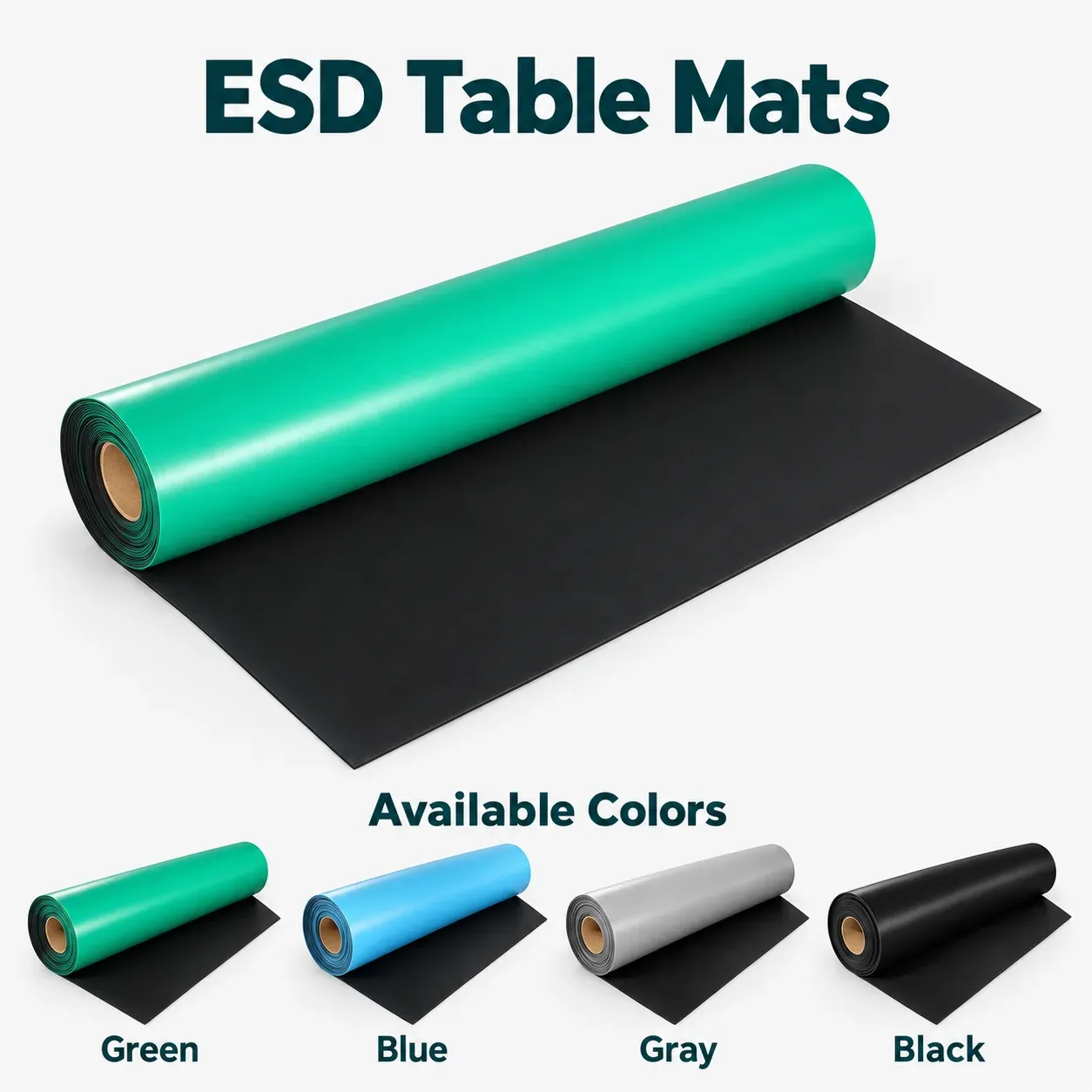

ESD table mat roll in green with black backing sheet, available colors green blue gray black

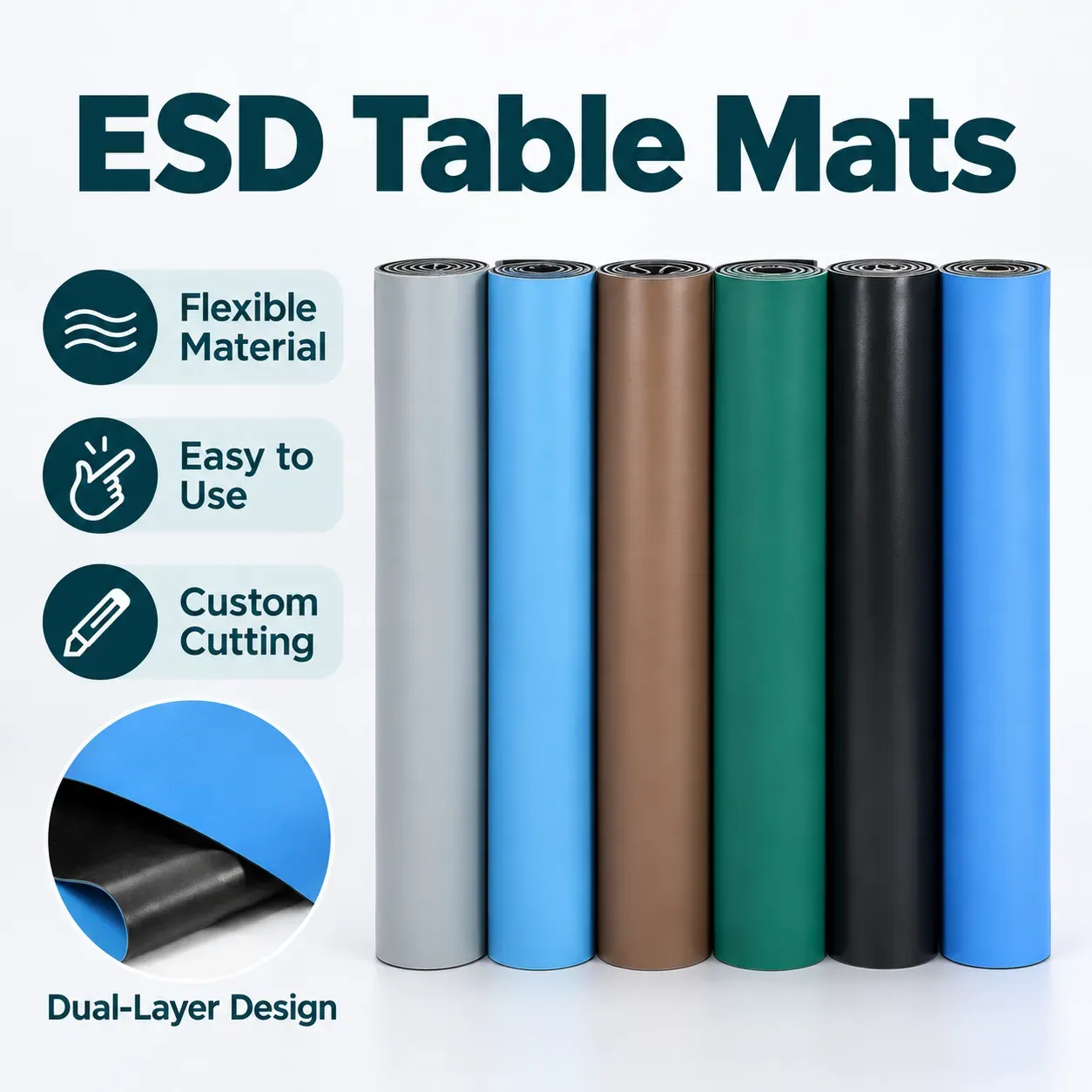

ESD table mat rolls in black, gray, blue and green

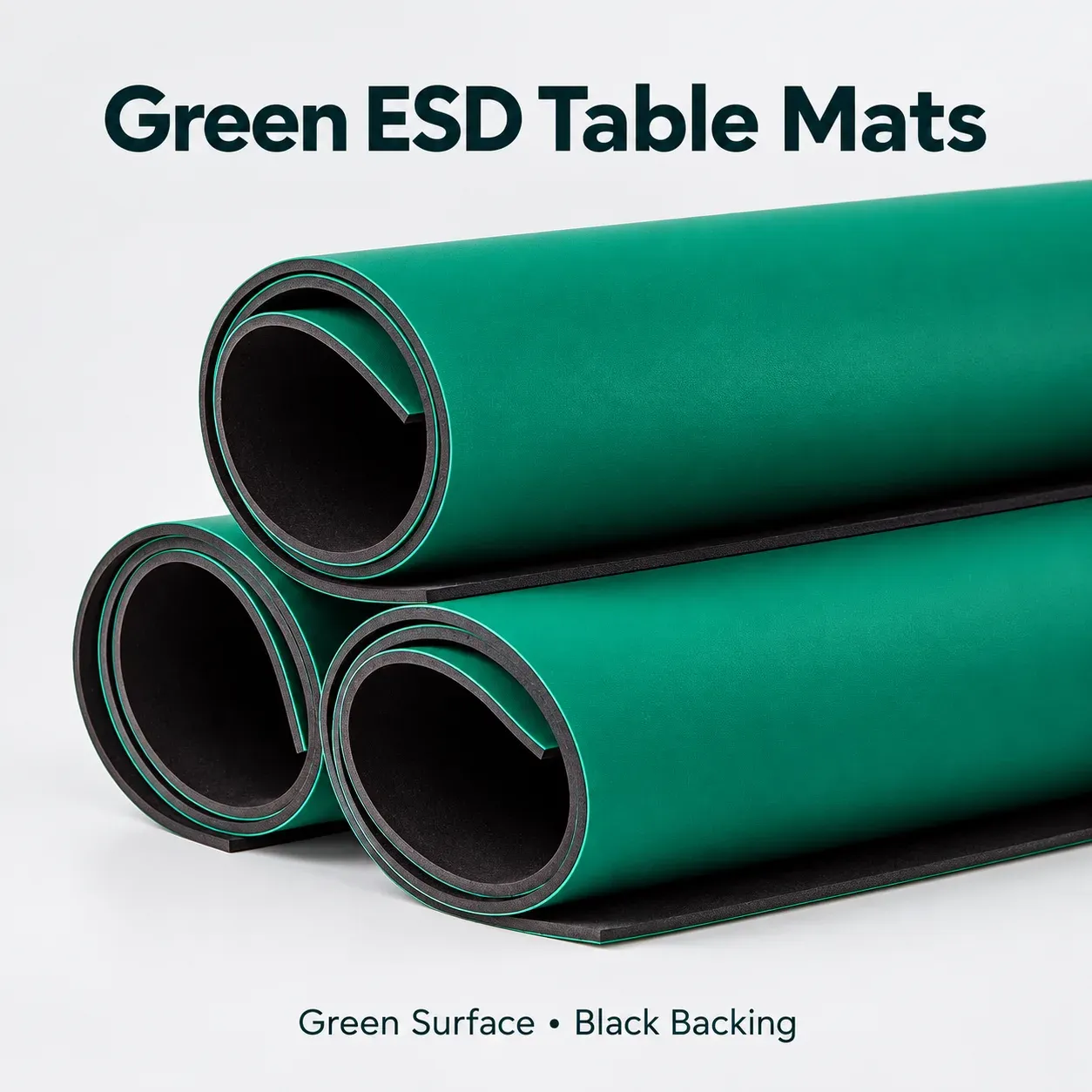

ESD table mat rolls in six color options

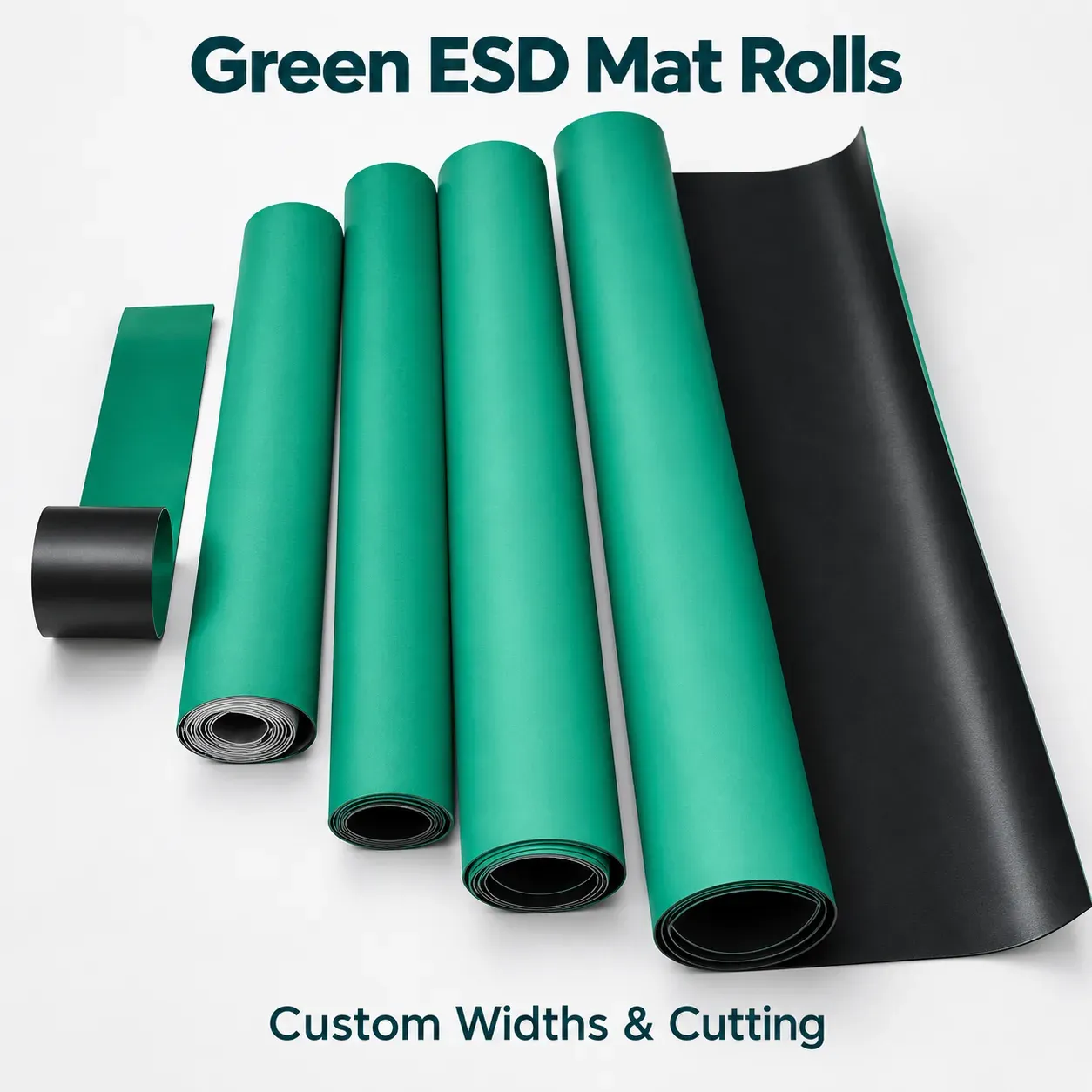

Dual-layer ESD mat with green dissipative layer and black conductive layer

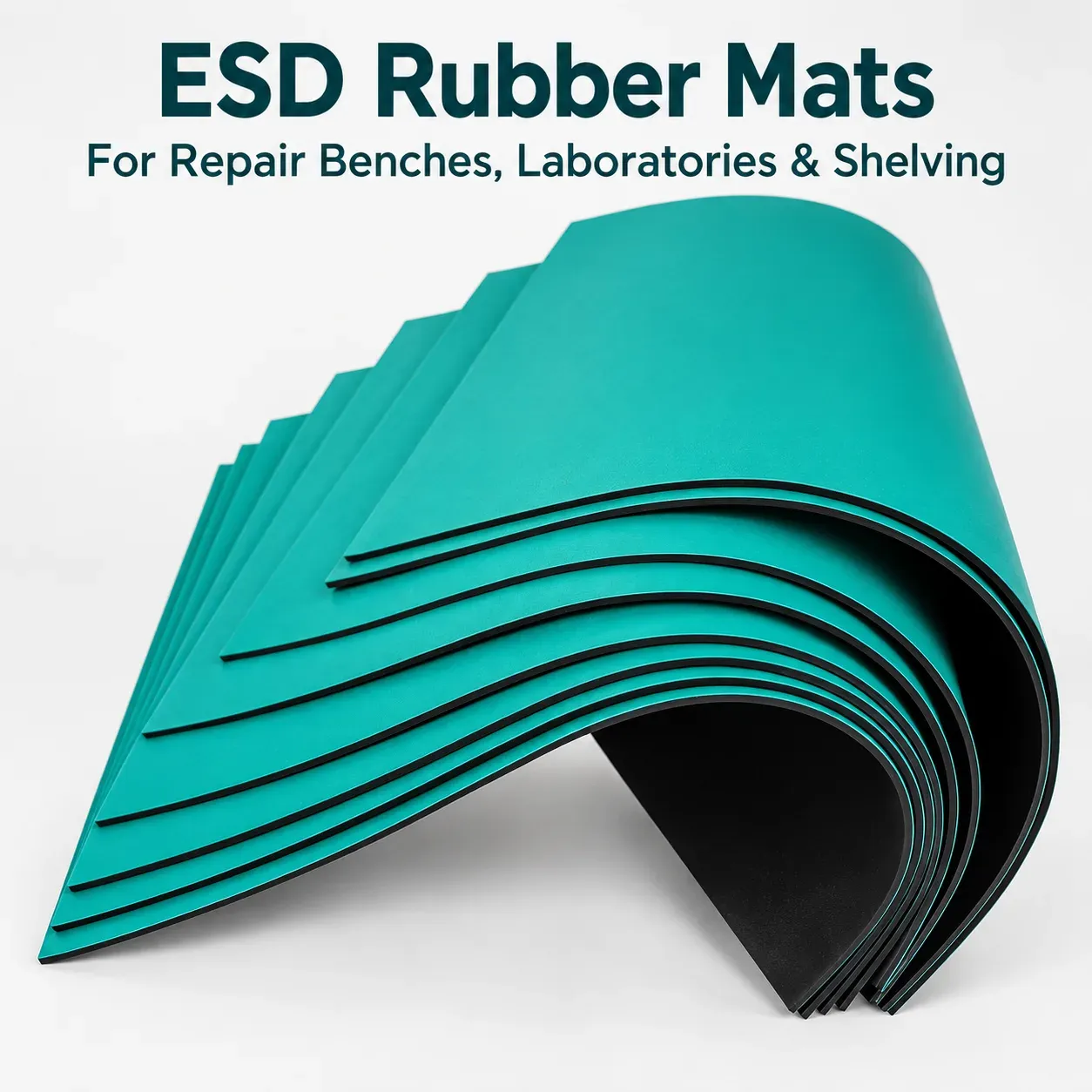

Stacked ESD mat sheets with green dissipative surface and black backing
ESD Table Mats

MS-E004 ESD Table Mat

ESD table mat available in green, blue, gray and black. Two-layer PVC construction with a dissipative top layer and conductive backing, supplied as rolls or custom-cut sheets.

Specifications

Model
MS-E004
Material
PVC, two-layer
Thickness
2 mm
Dimensions
Custom-cut to requirements
Surface Resistance
10⁶–10⁹ Ω
Backing Resistance
10³–10⁵ Ω
Static Decay Time
<0.1 s
Colors
Green / Blue / Gray / Black
Width Range
Up to 1.5 m
Supply Form
Rolls or custom-cut sheets
Applications
Workbenches, assembly lines, repair stations
The MS-E004 ESD table mat provides a static-dissipative work surface for electronics workbenches, assembly lines and repair stations. Made of PVC with a two-layer structure - a colored static-dissipative top layer over a black conductive backing layer - it drains static charges safely during everyday component handling.

Key Specifications

Material: PVC, two-layer structure
Thickness: 2 mm
Dimensions: cut to customer requirements
Surface resistance: 10⁶–10⁹ Ω
Backing resistance: 10³–10⁵ Ω
Static decay time: <0.1 s
Width range: up to 1.5 m
Colors: green, blue, gray, black
Supply form: rolls or custom-cut sheets

Available in Four Colors

The mat is available in green, blue, gray and black, letting teams match workstation zones or color-code test areas. Custom cutting to your dimensions or drawing is available, with grounding snaps installed at the positions you specify.

Ordering Information

Order quantities suit sample evaluation, trial sales and workstation projects. Send your dimensions, quantity and application - we confirm the specifications and prepare a quotation. Custom colors and paid samples are available on request.

Continue browsing

More products from the catalog

Pair it with other pieces from the same collection or routine.

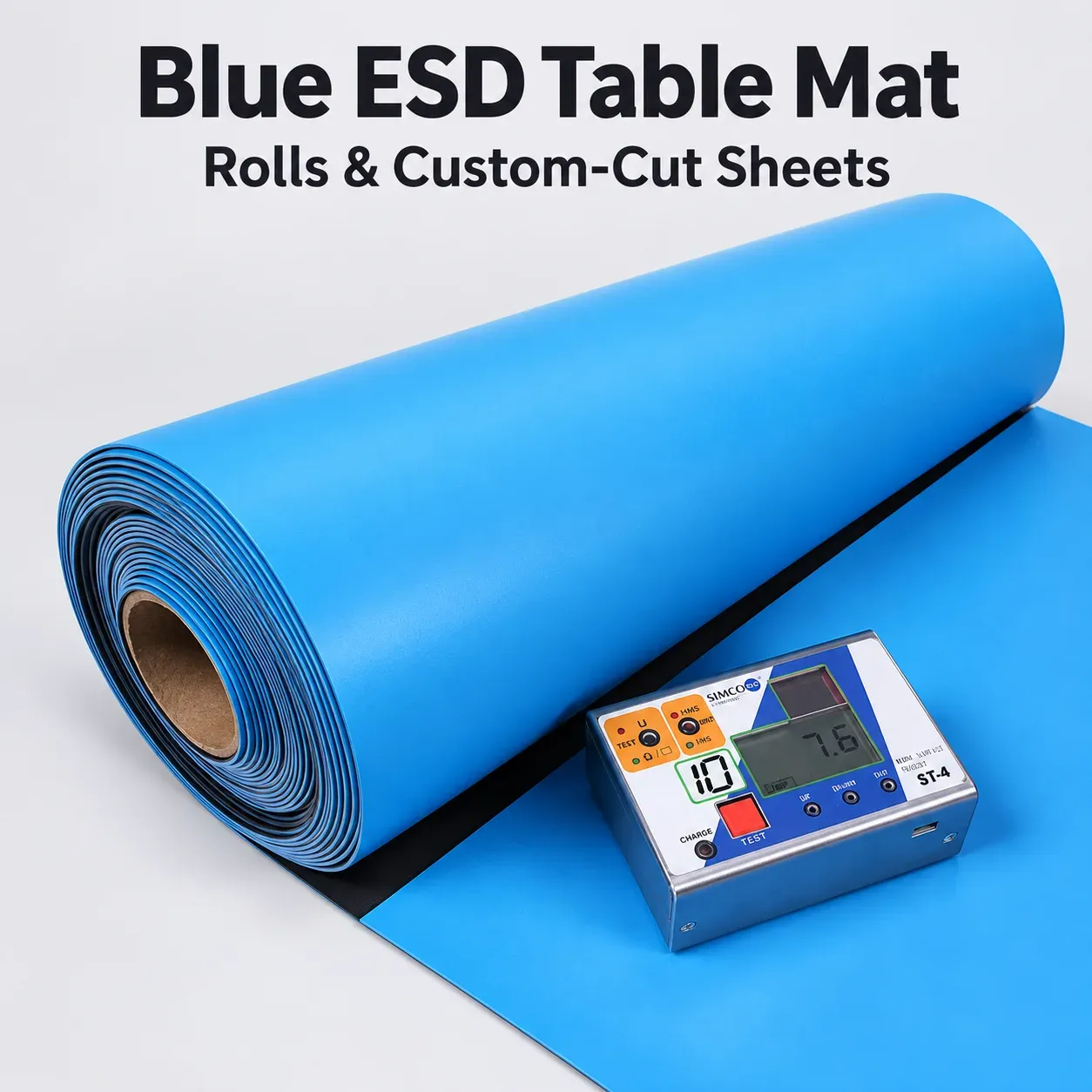

Blue ESD table mat roll with black backing layer and surface resistance tester
ESD Table Mats

MS-E007 Blue ESD Table Mat

Blue ESD table mat for electronics workbenches, assembly lines and repair stations. Two-layer PVC construction, supplied as rolls or custom-cut sheets.

View product
Green ESD table mat roll with black backing layer and custom-cut mat sheets
ESD Table Mats

MS-E006 ESD Table Mat

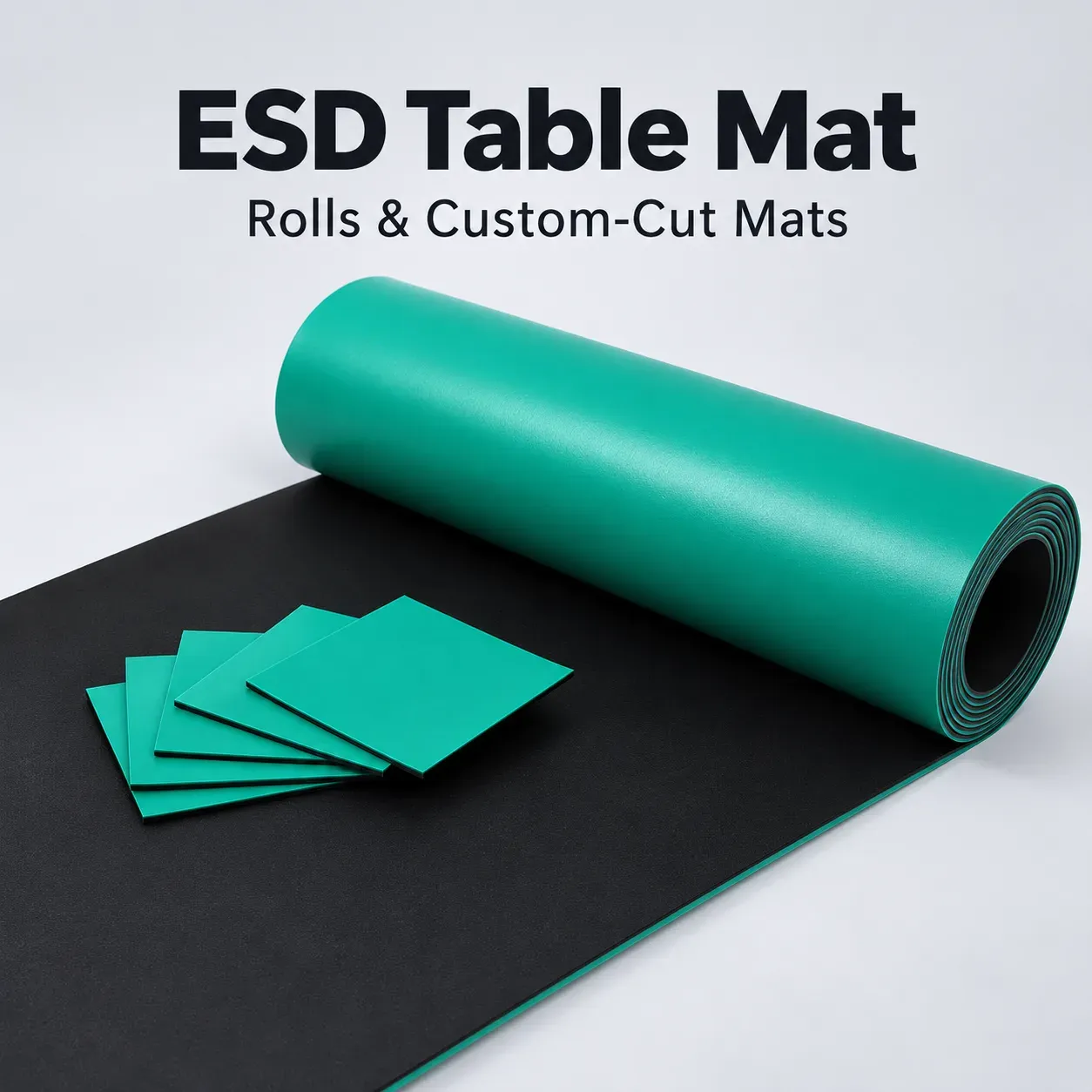

ESD table mat supplied as rolls and custom-cut mats. Green static-dissipative surface with black conductive backing layer, cut to your requirements.
