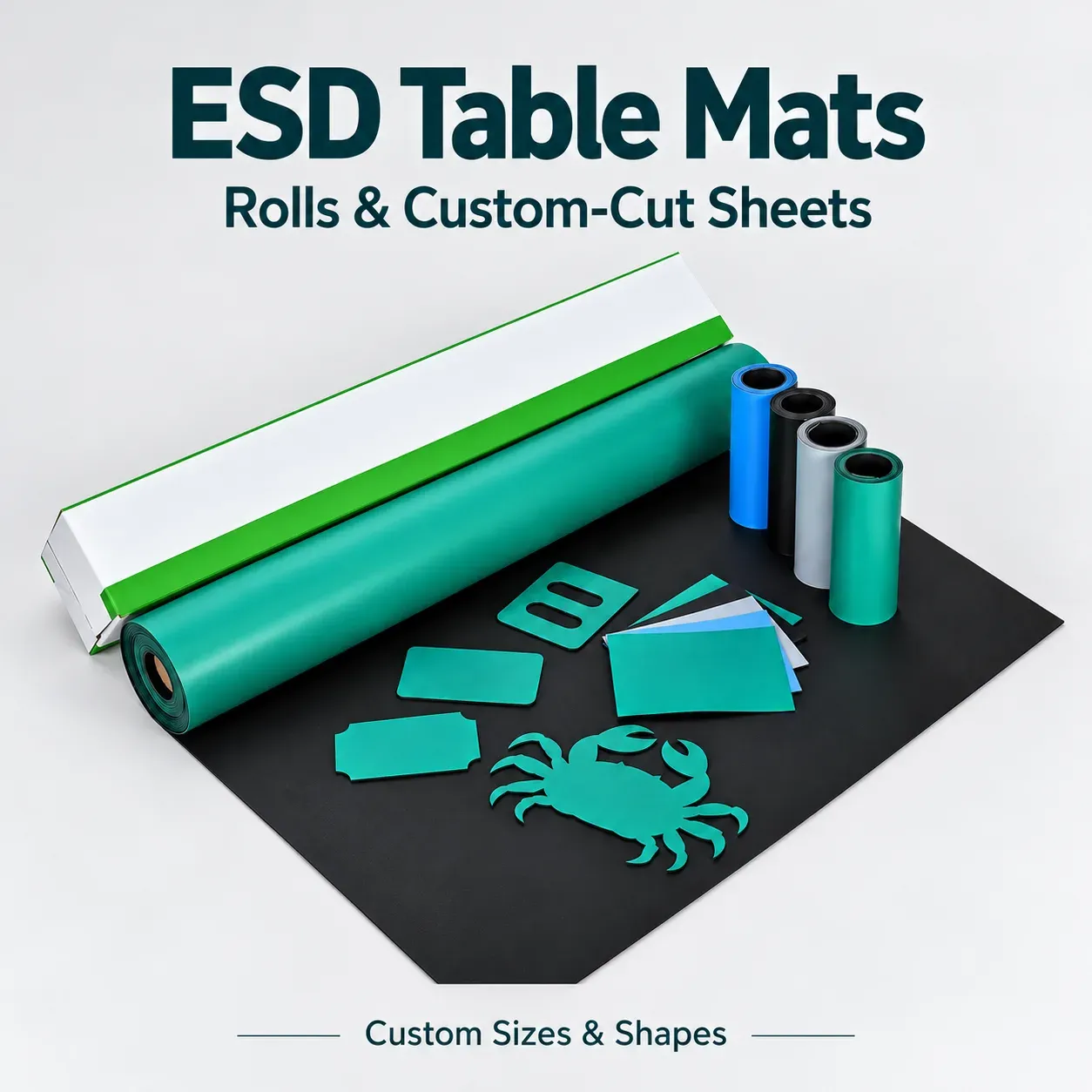

ESD table mat rolls with custom cutout sheets and color roll options

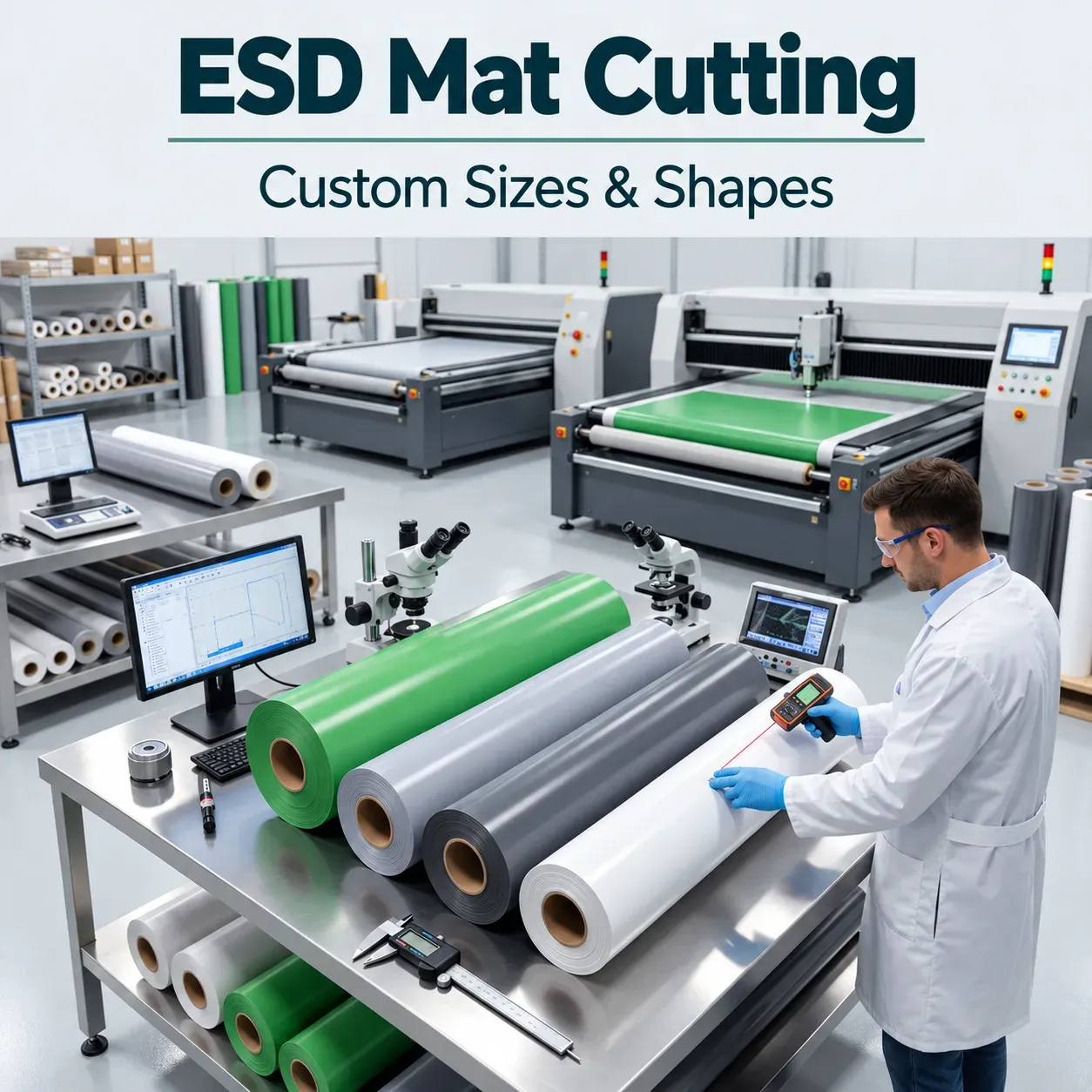

ESD mat cutting service in production facility

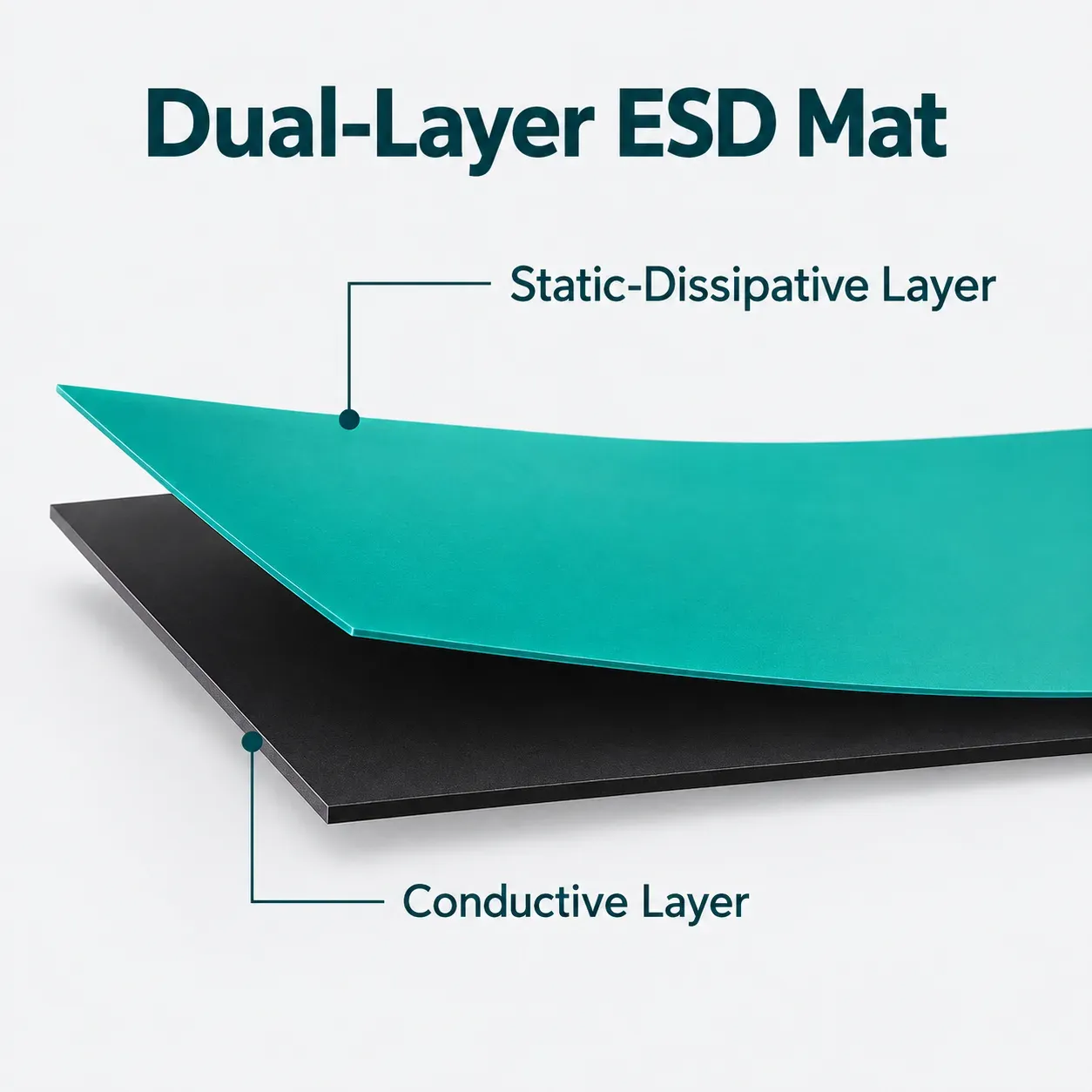

Dual-layer ESD mat structure: green dissipative layer over black conductive layer
ESD Table Mats

MS-E007 Blue ESD Table Mat

Blue ESD table mat for electronics workbenches, assembly lines and repair stations. Two-layer PVC construction, supplied as rolls or custom-cut sheets.

Specifications

Model
MS-E007
Material
PVC, two-layer
Thickness
2 mm
Dimensions
Custom-cut to requirements
Surface Resistance
10⁶–10⁹ Ω
Backing Resistance
10³–10⁵ Ω
Static Decay Time
<0.1 s
Color
Blue
Width Range
Up to 1.5 m
Supply Form
Rolls or custom-cut sheets
Applications
Workbenches, assembly lines, repair stations
The MS-E007 blue ESD table mat provides a static-dissipative work surface for electronics workbenches, assembly lines and repair stations. Made of PVC with a two-layer structure - a blue static-dissipative top layer over a black conductive backing layer - it drains static charges safely during everyday component handling.

Key Specifications

Material: PVC, two-layer structure
Thickness: 2 mm
Dimensions: cut to customer requirements
Surface resistance: 10⁶–10⁹ Ω
Backing resistance: 10³–10⁵ Ω
Static decay time: <0.1 s
Width range: up to 1.5 m
Color: blue
Supply form: rolls or custom-cut sheets

Custom Cutting Available

Standard rolls cover common bench layouts, and custom-cut mats are produced to your dimensions or drawing - including hole cutting, corner and side notches, rounded corners and custom shapes. Grounding snaps are installed at the positions you specify.

Ordering Information

Order quantities suit sample evaluation, trial sales and workstation projects. Send your dimensions, quantity and application - we confirm the specifications and prepare a quotation. Paid samples are available for evaluation.
